UI Dimension

UI Dimension
UI Dimension
Product Code : 12
Product Description

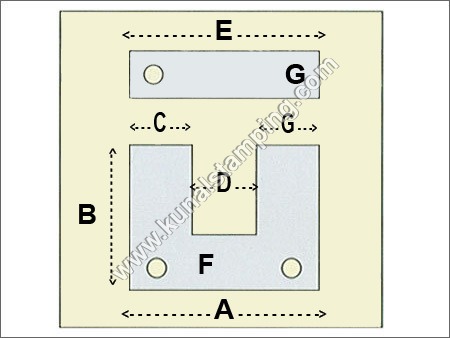

UI Dimension

ALL SIZE AREA IN : MM



SR. NO. A
B C D
E F HOLE
NO.








G
1 15 NO 76.2
101.8 25.4 25.4
76.2 25.4 8











2 3 NO 95.25
127 31.75 31.75
95.25 31.75 8











3 4 NO 114.3
152.4 38.1 38.1
114.3 38.1 8











4 6 B 133.35
177.8 44.45 44.45
133.35 44.45 8
5 7UI 152.4
203.2 50.8 50.8
152.4 50.8
6 7AUI 171.45
228.6 57.15 57.15
171.45   57.15
7 7B 190.5
254 63.5 63.5
190.5 63.5 12
8 9 U 228.6
304.8 76.2 76.2
228.6 76.2 12
