EI Lamination Core

EI Lamination Core
EI Lamination Core
Product Code : 03
Product Description

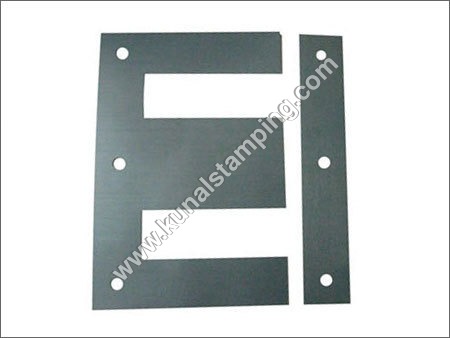

In order to meet the various electrical requirements of the clients, we have been engaged in offering our clients an optimum quality EI Lamination Core. The offered core is manufactured using the finest quality metals and modern technology at our advanced production unit. This core is available in both small and big sizes and is used in transformer making. Apart from this, EI Lamination Core is tested on several parameters in order to eradicate all possible flaws of production.

Features:

  • Corrosion resistance

  • A flawless finish

  • Optimum finish

  • Dimensional accuracy

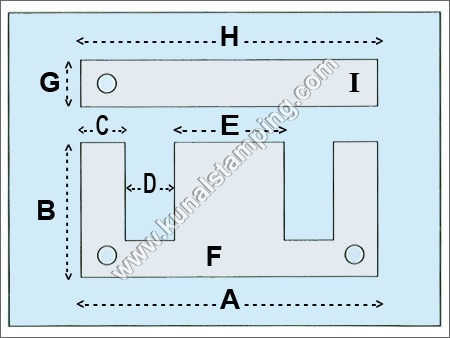

Dimension:

All Size Area In: MM
SR. SIZE A B C D E F G H I
NO.








Hole Size
1 1 NO 28.6 22 4.76 4.76 9.53 4.76 4.76 28.6











2 17 NO 36.1 25.4 6.35 6.35 12.7 6.35 6.35 36.1











3 17 SPL 41.5 27.5 6.35 8 12.7 6.35 6.35 41.5











4 12 NO 48.1 31.75 8.02 8.02 16.04 8 8 48.1











5 23 NO 57.15 38.1 9.52 9.52 19.05














6 30 NO 60 40 10 10 20














7 45 NO 67.5 44.45 11.25 11.25 22.5


3











8 15 NO 76.2 50.8 12.7 12.7 25.4 12.7 12.7 76.2











9 33 NO 94 56 14 14 28 14 14 84 6.75











10 3 NO 96.25 63.5 16.04 16.04 32.06 16.04 16.04 96.25 6.75











11 4 NO OR 16 114.3 76.2 19.05 19.05 38.1 19.05 19.05 114.3 6.75











12 6 B 133.35 88.9 22.22 22.22 44.45 22.22 22.22 133.4 6.75











13 7 NO OR 43 152.4 101.6 25.4 25.4 51.8 25.4 25.4 152.4 6.75











14 7 B 190.5 127 31.75 31.75 63.5 31.75 31.75 190.5 8











15 8 NO 184.15 146.05 25.4 41.5 50.8 25.4 25.4 184.2 8











16 8 B 234.95 158.75 38.1 41.28 76.2 38.1 38.1 235 12











17 9 NO (9 X 12) 228.6 152.4 38.1 38.1 76.2 38.1 38.1 228.6 12.5











18 10 (101/2 X 14) 266.7 177.8 44.45 44.45 88.9 44.45 44.45 266.7 12.5











19 100 NO(12 X 16) 304.8 203.2 50.8 50.8 101.6 50.8 50.8 304.8 12.5











20 200 NO (15 X20) 381 254 63.5 63.5 127 63.5 63.5 381 12.5
