Electric UI Core

Get a Price/Quote

Electric UI Core Specification

Insulation Material
PVC

Surface Finish
Matte

IP Rating
IP20

Mounting Type
Panel Mount

Feature
Robust Design, Simple Operation

Connector Type
Screw Type

Overheating Protection
YES

Power Factor
0.98

Efficiency
High

Shape
Rectangular

Product Type
Electric UI Core

Application
Electrical Control Panel

Protection Level
IP20

Frequency (MHz)
50 Hz

Rated Voltage
220 V

Energy Consumption
Low

Color
White

Dimension (L*W*H)
120x90x45 mm

Weight
300 g

Size
Compact

Phase
Single Phase

Material
ABS Plastic

No Of Poles
2

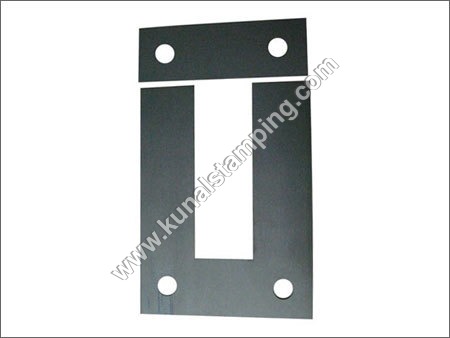

About Electric UI Core

We are one of the leading manufacturers, exporters and suppliers of an excellent quality assortment of Electric UI Core. This core is manufactured using optimum quality metal materials by our skilled professionals in tune with the specifications provided by the clients. Our offered Electric UI Core is made available in different specifications and counts of thickness as per the details, provided by our clients. In addition to this, clients can avail this core from us at competitive prices.

Features :

Sturdy construction
Optimum strength
Corrosion resistance
Dimensional accuracy

Dimension:

All Size Area In: MM

Sr.	No	A	B	C	D	E	F	Hole
No								G
1	15 No	76.2	101.8	25.4	25.4	76.2	25.4	8
2	3 No	95.25	127	31.75	31.75	95.25	31.75	8
3	4 No	114.3	152.4	38.1	38.1	114.3	38.1	8
4	6 B	133.35	177.8	44.45	44.45	133.35	44.45	8
5	7 B	190.5	254	63.5	63.5	190.5	63.5	12
6	9 U	228.6	304.8	76.2	76.2	228.6	76.2	12

Compact Yet Capable Design

Engineered for tight spaces, the Electric UI Core features a compact 120x90x45 mm build without compromising performance. Its robust ABS plastic housing ensures durability, while the matte surface resists everyday wear. This makes it attractive for modern electrical panel designs where both size and reliability matter.

Enhanced Safety and Efficiency

Operating at a power factor of 0.98 and equipped with IP20-rated protection, this device minimizes electrical hazards and ensures stable, energy-efficient functioning. Integrated overheating protection and high-quality insulation materials contribute to long-term reliability, safeguarding sensitive control systems.

FAQs of Electric UI Core:

Q: How is the Electric UI Core typically installed in control panels?

A: The Electric UI Core is designed for panel mounting, utilizing screw-type connectors to ensure a secure and reliable electrical connection during installation. Its compact size and user-friendly mounting process simplify integration into both new and existing electrical panels.

Q: What are the main benefits of using this device in electrical control panels?

A: This product offers robust protection, high energy efficiency, and simple operation. Its overheating protection and durable ABS plastic body help maintain system integrity, while low power consumption reduces long-term operating costs.

Q: When should I consider using the Electric UI Core in my application?

A: The Electric UI Core is ideal when you need a compact, highly efficient, and reliable control solution for single-phase systems operating at 220 V and 50 Hzespecially in environments where space saving and dependable protection are priorities.

Q: Where can the Electric UI Core be sourced in India?

A: The Electric UI Core is available through established importers, manufacturers, and suppliers across India. Official distributors typically offer after-sales support and technical guidance for industrial and commercial users.

Q: What is the standard operating process for this unit?

A: After securely mounting the Electric UI Core in the panel and connecting via screw terminals, power can be safely supplied. The device features straightforward operation, with integrated safety mechanisms such as IP20-rated enclosure and internal overheating protection.

Q: How does the device protect against overheating?

A: The Electric UI Core comes with built-in overheating protection, which automatically safeguards components if excessive heat is detectedpreventing potential damage and extending operational lifespan.

Q: What usage environments is the Electric UI Core suitable for?

A: Given its IP20 rating and sturdy ABS construction, the Electric UI Core is suited for indoor electrical control panels where moderate physical and dust protection is sufficient, and a high standard of efficiency is required.
