LTL Lamination

LTL Lamination
LTL Lamination
Product Code : 11
Product Description

 EI Dimension

ALL SIZE AREA IN : MM

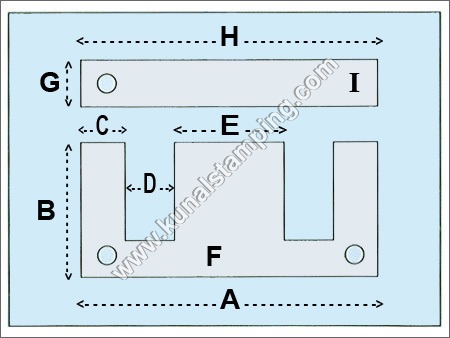

SR. SIZE A B C D E F G H I
NO.








Hole Size
1 1 NO 28.6 22 4.76 4.76 9.53 4.76 4.76 28.6











2 17 NO 36.1 25.4 6.35 6.35 12.7 6.35 6.35 36.1











3 17 SPL 41.5 27.5 6.35 8 12.7 6.35 6.35 41.5











4 12 NO 48.1 31.75 8.02 8.02 16.04 8 8 48.1











5 23 NO 57.15 38.1 9.52 9.52 19.05














6 30 NO 60 40 10 10 20














7 45 NO 67.5 44.45 11.25 11.25 22.5


3











8 15 NO 76.2 50.8 12.7 12.7 25.4 12.7 12.7 76.2











9 33 NO 94 56 14 14 28 14 14 84 6.75











10 3 NO 96.25 63.5 16.04 16.04 32.06 16.04 16.04 96.25 6.75











11 4 NO OR 16 114.3 76.2 19.05 19.05 38.1 19.05 19.05 114.3 6.75











12 6 B 133.35 88.9 22.22 22.22 44.45 22.22 22.22 133.4 6.75











13 7 NO OR 43 152.4 101.6 25.4 25.4 51.8 25.4 25.4 152.4 6.75











14 7 B 190.5 127 31.75 31.75 63.5 31.75 31.75 190.5 8











15 8 NO 184.15 146.05 25.4 41.5 50.8 25.4 25.4 184.2 8











16 8 B 234.95 158.75 38.1 41.28 76.2 38.1 38.1 235 12











17 9 NO (9 X 12) 228.6 152.4 38.1 38.1 76.2 38.1 38.1 228.6 12.5











18 10 (101/2 X 14) 266.7 177.8 44.45 44.45 88.9 44.45 44.45 266.7 12.5











19 100 NO(12 X 16) 304.8 203.2 50.8 50.8 101.6 50.8 50.8 304.8 12.5











20 200 NO (15 X20) 381 254 63.5 63.5 127 63.5 63.5 381 12.5
